Take Control with our

Motor Controllers

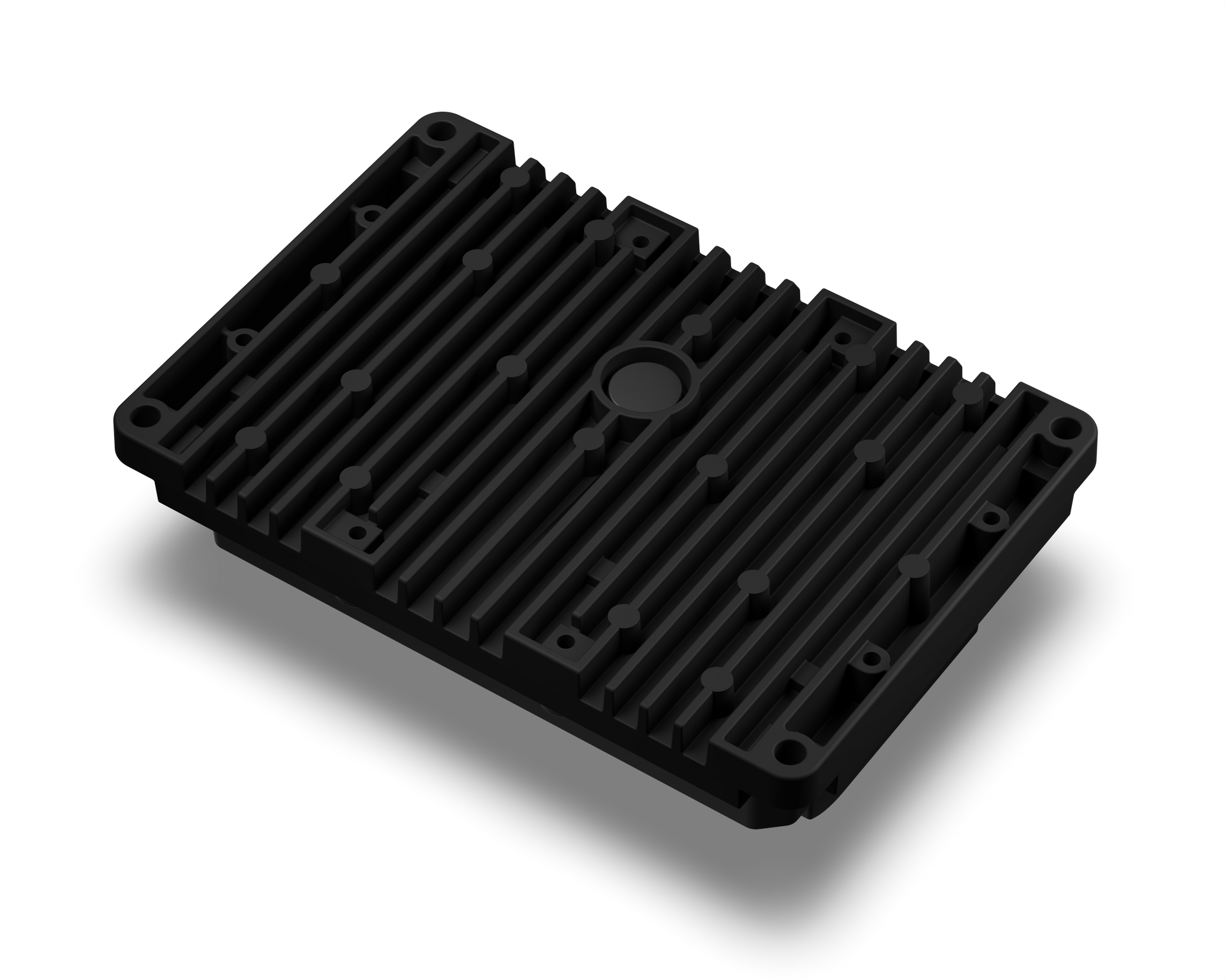

A black tray with a hole in the middle on a white background

NEW!

MCU2500

This motor control unit provides a sustained power output of 1.5 kW and has been specifically engineered to meet the rigorous demands of the Asian 2- and 3-wheel vehicle market. Its exceptional durability enables reliable performance in challenging environments and high temperatures.

Thanks to the extensive versatility of our motor control unit and its custom-designed firmware, the MC2500 is also appealing for a variety of additional target markets.

A wide array of interfaces facilitates seamless integration into many applications.

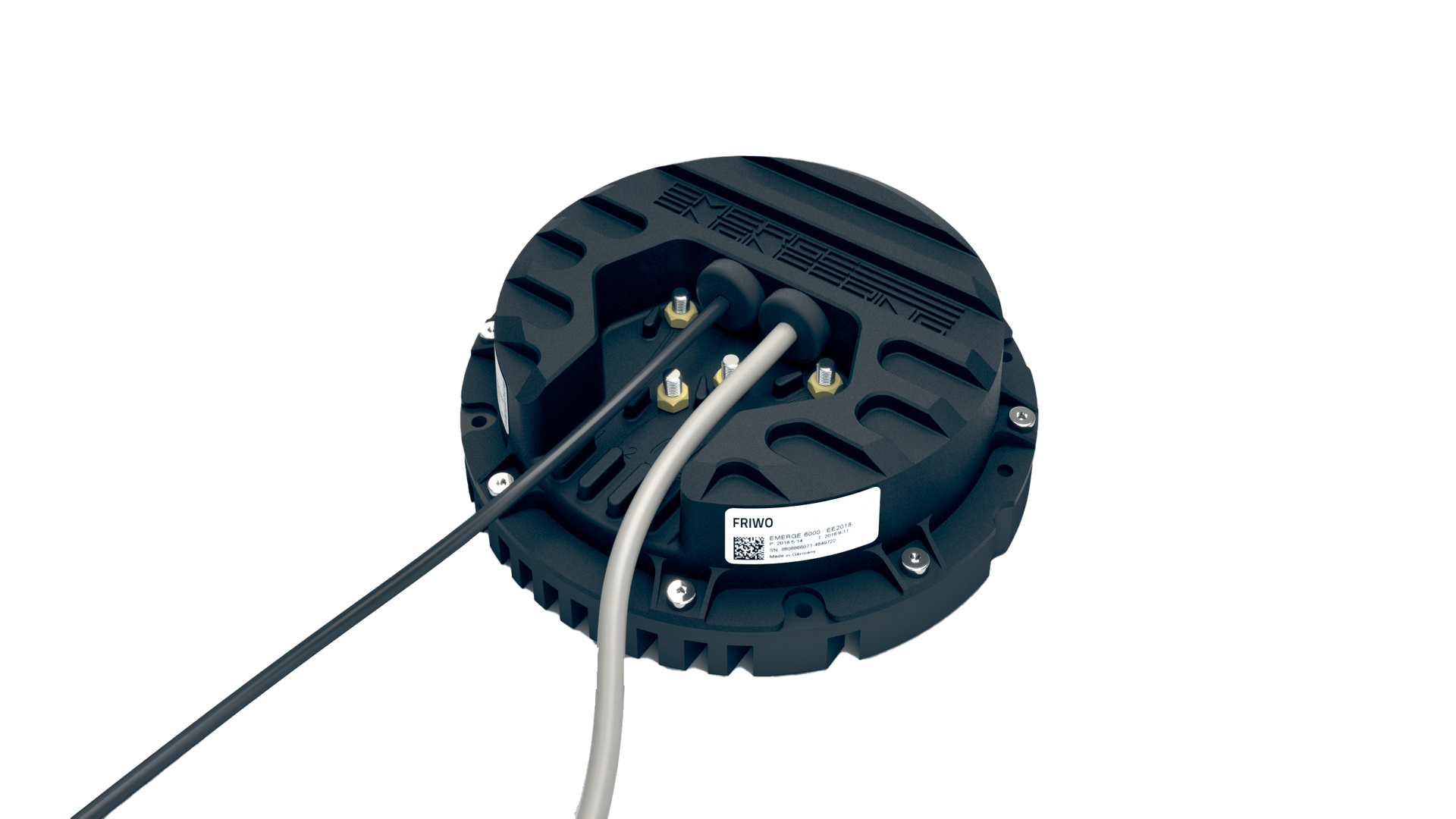

A close up of a black object with wires coming out of it.

MOST POPULAR

MCU6000

The motor control unit for 48V drives was specially developed for use in light electric vehicles. With a continuous output of 6kW and a peak power of up to 12kW, the Emerge 6000 accelerates confidently through everyday life.

A black object with a cord attached to it on a white background.

COMING SOON!

MCU8000

More details coming soon

Application Examples

This kit can be implemented into various vehicles and robotic applications that need a element of exact motor motor control.

Power and Battery Capacity can be increased for larger applications by wiring up the components in a grid.

OUTSIDE X-RAY

Electric Rickshaws

In order to serve one of the world’s most rapidly developing markets in a targeted manner, our partner FRIWO has now founded its own subsidiary in India.

The core tasks of the new subsidiary will be support and project management for local customers as well as the coordination of local manufacturing. With the goal of being able to flexibly serve the demanding Indian market with high-quality solutions

Electric Scooters

Our electric powertrain kit has already been implemented into thousands of rental vehicles across Europe with millions of Km racked up of experience.

If you are designing your your own E-Scooter and wanting to source a reliable, customizable and powerful drive kit then look no further!

Other applications include Go-karts, Quad bikes, Golf carts, Drones, Conveyor belts, Stair lifts and quite frankly, any application that requires a motor and there needs to be an element of control.

OUTSIDE X-RAY

& Many More!

Curious to explore a range of applications where our technology has made an impact?

Check out our Application Examples & Success Stories to gain insight into the diverse uses of our technology. While we are unable to reveal all our projects due to confidentiality agreements, we trust that this page will showcase the versatility and strength of the FRIWO powertrain system.

Check it Out!

Extra Services

Build Your Own

Motor Controller!

Supporting elegant solutions

The board of our proven Emerge 6000 motor control unit is ideally suited to be embedded in a customer-specific installation space.

We will supply you with it as an assembled printed circuit board and you take care of the mechanical and electrical integration.

Our control unit is also optimally equipped for special requirements: for example, there are some applications where the circuit board is placed behind a rotor in axial extension. In this case, we also have the option to work with an onboard resolver.

In the resolver, a magnet is placed on the shaft end and the motor control unit is placed centrally above it. This saves using Hall sensors and the associated wiring, which greatly improves the way the control unit works.

Together we will find the optimal solution – just contact us!

Get in Touch!

Button

Supply voltage	14V - 65V

Phase current	300A

Motor types	PMSM

Control algorithm	Field oriented control with flux weakening

Functions	Automatic teach-in, four ride modes, reverse gear, boost, display control, smartphone app

Position feedback	Hall sensor, onboard resolver

Analog inputs	2

Digital inputs	2

Communication	CAN, Wireless

Diagnostic interface	USB, CAN

Diameter (PCB)	118mm

Height ( Cap)	4mm - 7mm ( 25mm)

Button

Annual quantity	>1000 Stk.

One-off costs for production data	Yes

Annual costs for production system	Yes

Licensing costs	Per motor controller

Build Your Own

PCB!

Control Your Production

Are you trying to manufacture larger quantities and would like some autonomy?

We will provide you with the production data for our reliable motor control unit!

With the production data for our power electronics you can take the procurement of the printed circuit board into your own hands. You can purchase the electronic components internationally and produce the circuit board anywhere in the world.

We supply you with the production computer for this purpose, where you can load the manufactured printed circuit boards with a software license. We have been using the database system needed for this every day since 2012 and it ensures reliable production with an uptime of 99.8%.

Get in Touch!

MEDKit

Motor-Control Education Kit

Developed for students

The motor control education kit is a hardware platform for the development of motor control software for brushless electric motors and was developed specially for educational use at universities.

The openly accessible printed circuit board comprises a micro-controller, a power module, and an electric motor. The power module is properly dimensioned to control the electric motors of e-bikes and e-scooters with an output of up to 1,000W.

A direct connection to dSPACE TargetLink allows seamless transition between different types of simulation:

– Model in the Loop simulation (MiL): floating point simulation of the Simulink model

– Software in the Loop simulation (SiL): fixed-point simulation of the TargetLink model on the host PC

– Processor in the Loop simulation (PIL): fixed-point simulation of the TargetLink model on the ARM core

An example project with the Matlab Simulink model of how to control an e-bike wheel hub motor with space vector PWM (SVPWM) in connection with field-oriented control algorithm (FOC) is included in the scope of delivery.

German Universities Only
