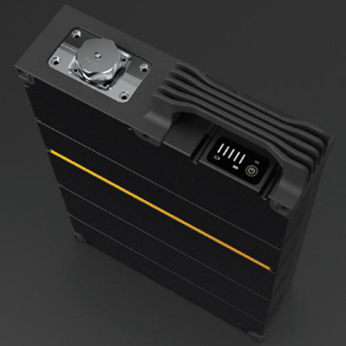

ECO Li-Ion Battery Pack
14S 12P Li-Ion Battery | Peak current 65A
About
About
Our battery packs provide the power for Europe’s largest rental scooter fleets and have proven safe continuous operation and a long service life in more than 5,000,000 km and more than 150,000 hours of charging.
24/7 continuous operation requires a robust battery management system (BMS) to ensure high safety and availability. Since we have developed 100% of the BMS electronics and software ourselves, we can react flexibly to special customer requirements and special functions.
Overview
Overview
| Energy | 2216 Wh |
|---|---|
| Cell type | Samsung INR 18650 35E |
| Cell config | 14S 12P |
| Nominal voltage | 50.4V |
| Voltage range | 42V min - 59V max |
| Cont. current | 50A |
| Peak current | 65A |
| 12V output | 1.6A |
| Standby | <0.1mA |
| Digital inputs | Keylock (Enable), Charger |
| Communication | CAN-Bus |
| Diagnostic interface | USB, CAN |
| Dimensions | 268mm x 76mm x 378mm |
| Weight | 10kg |
