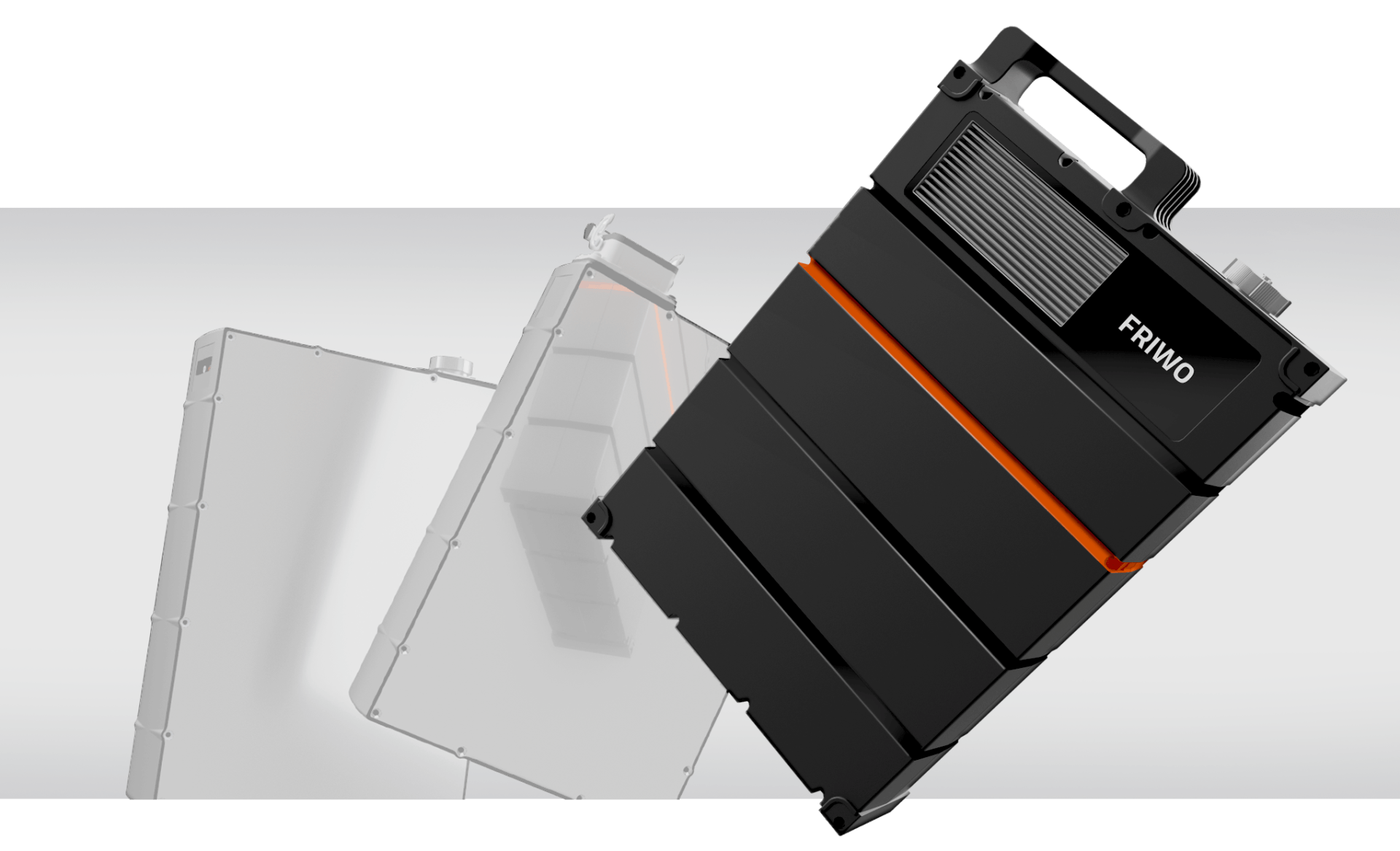

GEN2 Li-Ion Battery Pack

More Power for Longer!

About

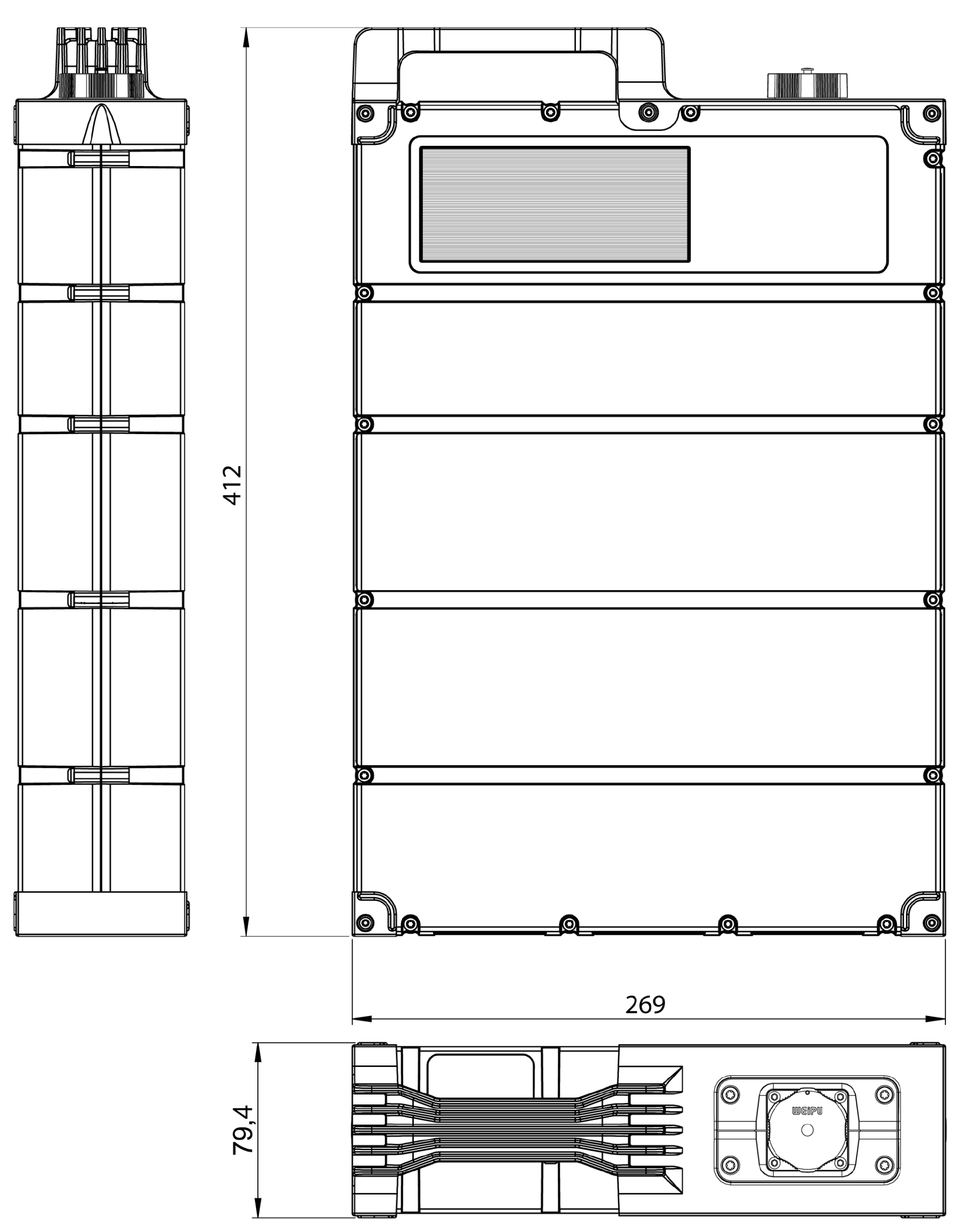

Measuring only 412 x 79.4 x 269mm, this is no small battery...

It is capable of delivering up to 150A of peak current, this sure packs a punch!


The new housing is IP65 rated for dust and water protection.


The new built-in BMS is included for cell monitoring, balancing and reprogramming.

We can deliver 40% more constant current compared to the previous version and up to 100% more peak power thanks to included heatsink used for active cooling.


You can also wire 2 to 50 packs in parallel for increased capacity/running time.

Once the packs have been upgraded with the Gird Firmware they will communicate with each other via CAN Bus to deliver the appropriate power equally.


This pack has been approved to the relevant safety and transportation standards using two different cell types, this allows FRIWO to manufacture the packs quicker depending on cell availability, both constructions offer the same performance and approvals.


FRIWO have also designed and made the charger for this pack, a perfect match to enable efficient charging and longer cycle life.


This pack is available on its own or part of the electric powertrain kit.

Pair this with our motor controller and software for a perfectly aligned system.

Overview

Energy 2026 Wh
Cell type Samsung INR 18650 35E / BAK N18650-CP
Cell config 14S 12P
Nominal voltage 50.4V
Voltage range 42V min - 59V max
Cont. current 50A
Peak current 150A
12V output 1.6A
Standby <0.1mA
Digital inputs Keylock (Enable), Charger
Communication CAN-Bus
Diagnostic interface CAN Bus
Dimensions 412mm x 79.4mm x 269mm
Weight 11kg


Construction

Standard Description
ROHS directive (Protection circuit) Remove of Hazardous Substances
WEEE directive Waste Electrical and Electronic Equipment
Battery directive Directive on batteries and accumulators and waste batteries and accumators and repealing Directive 91/157/EEC
EN62133-2 Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications
UL2054 Household and commercial batteries


Approvals

Standard Description
UL 1642 (Cells) Standard for Lithium Batteries
IEC62133-2:2017 (Cells) Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for portable sealed secondary lithium cells, and for batteries made from them, for in portable applications. - Part 2: Lithium systems.
UN38.3/ IEC62281:2019 (Pack) Safety of primary and secondary lithium cells and batteries during transport.
IP65 The degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water.


Downloads

To maximise production flexibility we have built and approved 2 versions of this

battery pack, either constructed with Samsung or BAK cells.


Both versions offer the same performance and approvals


See datasheets below

BAK Battery Pack Construction Samsung Battery Pack Construction

Approval Certificates, Test Reports and Manuals Available On Request

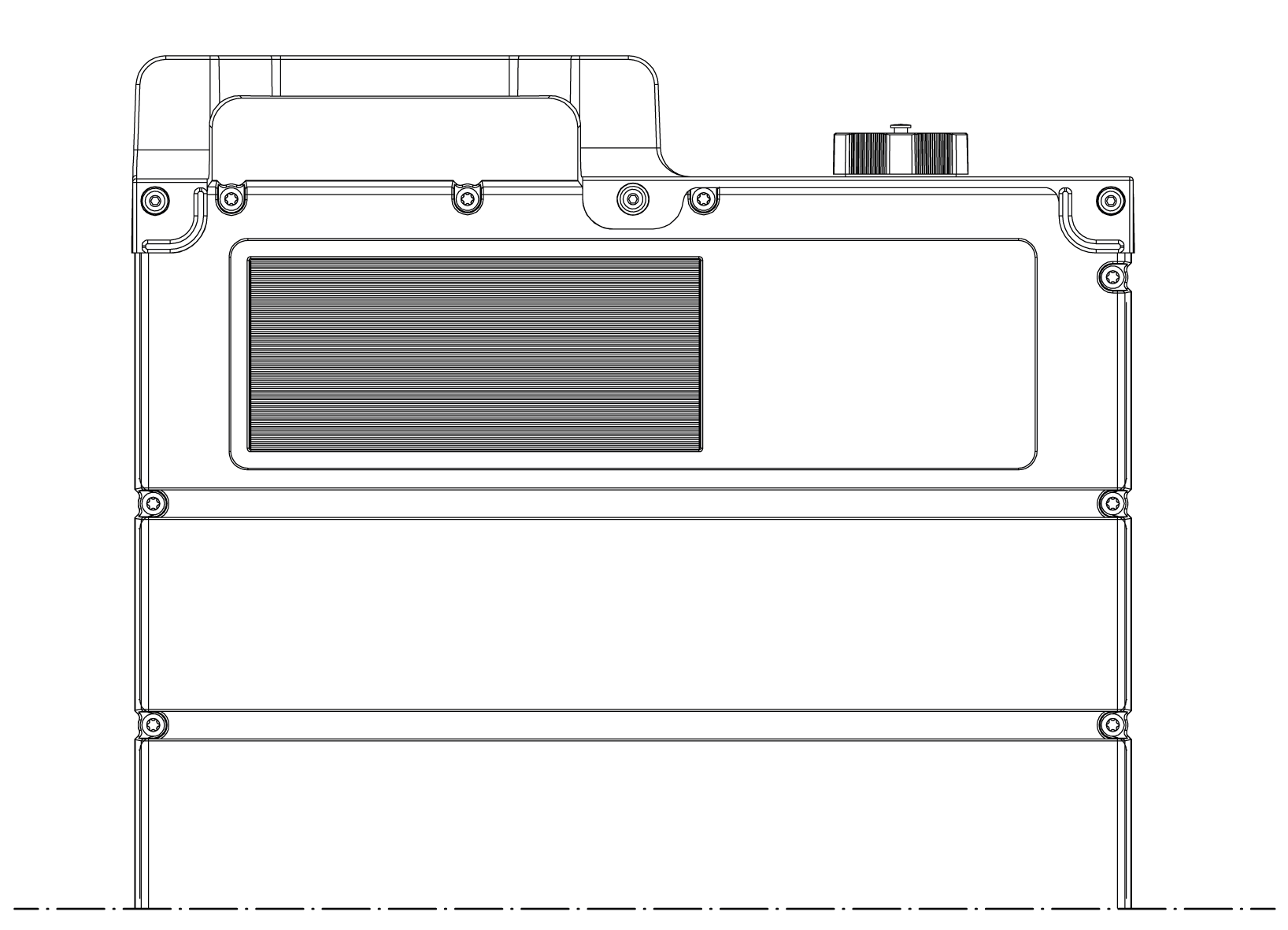

A black and white drawing of a machine on a white background.

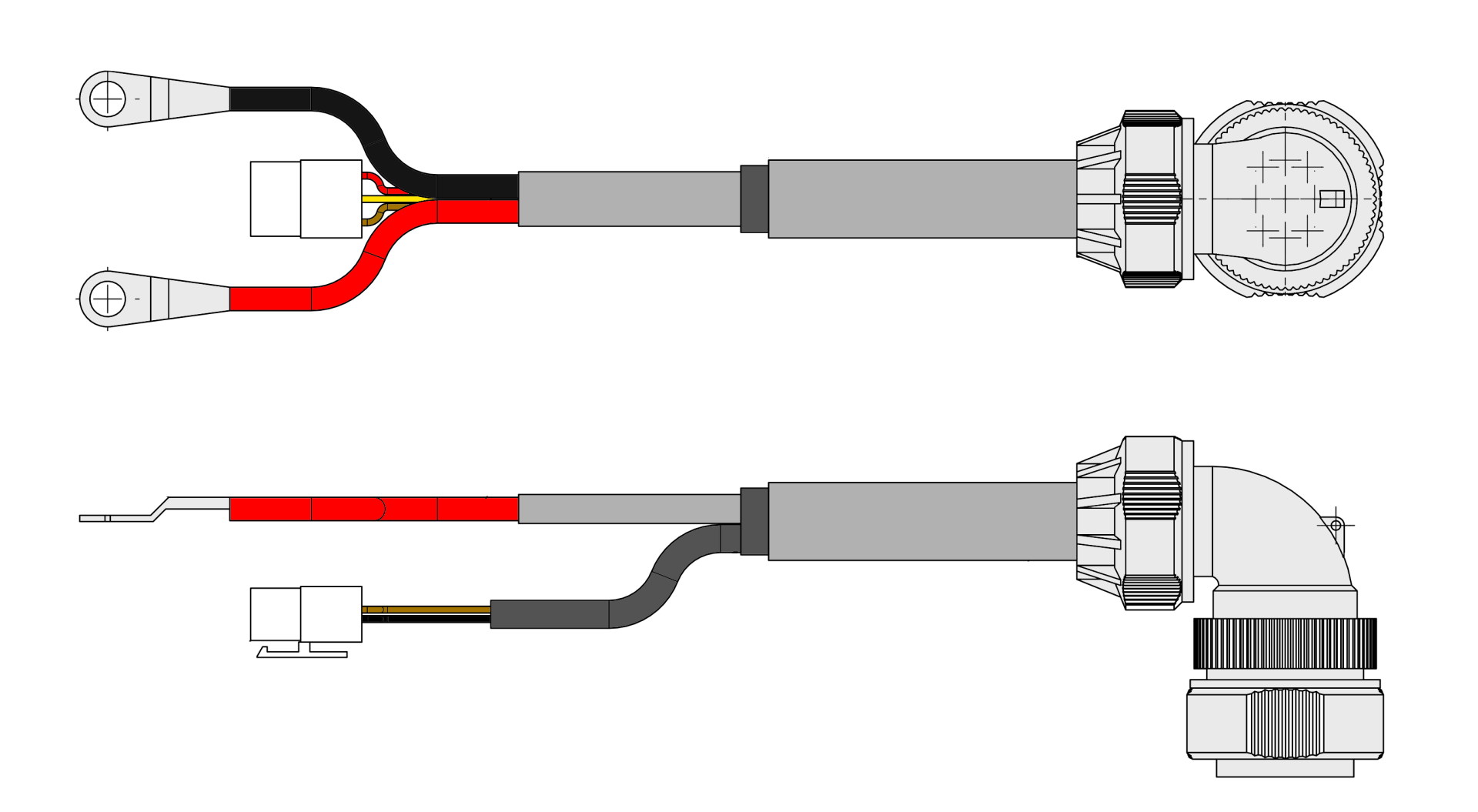

Need A Connector?

You're more than welcome to build your own Weipu lead connector for the battery,

we will happily supply you with the socket information and pin diagram.


Alternatively, we can supply you with our existing design. The necessary pins are already wired up, ready for connecting to our motor controller or into your application.


Need a custom connector and socket?

Not a problem!


Just speak to one of our sales team and we can talk you through the options.
