BMS | Gen1

Battery Management System

About

Our premium Battery Management System (BMS) not only provides dependable protection for your battery but also encompasses a wide range of convenient features and advanced communication capabilities. With its UL certification, this BMS is not only engineered for exceptional performance but is also approved for safe use and sale in over 50 countries across the globe, including the United States.


In practical terms, battery packs designed for a diverse array of applications have undergone rigorous testing and have successfully achieved certification with this BMS, all in full compliance with the stringent UN38.3 standards. Moreover, the programming and adjustment of the BMS are efficiently conducted on-site through our innovative Enable Tool development and diagnostic software. This powerful tool not only facilitates the programming of your system but also enables you to perform safe and reliable firmware updates on pre-delivered battery packs, ensuring that your systems remain up-to-date with the latest enhancements and performance optimizations.


Cell config (series)

10 - 14 S

Cell config (parallel)

Up to 20

Continuous current

65A

Communication

CAN, USB

Input signals

Keylock/Buttons, Charger

Peak current

70A

Downloads

Datasheet

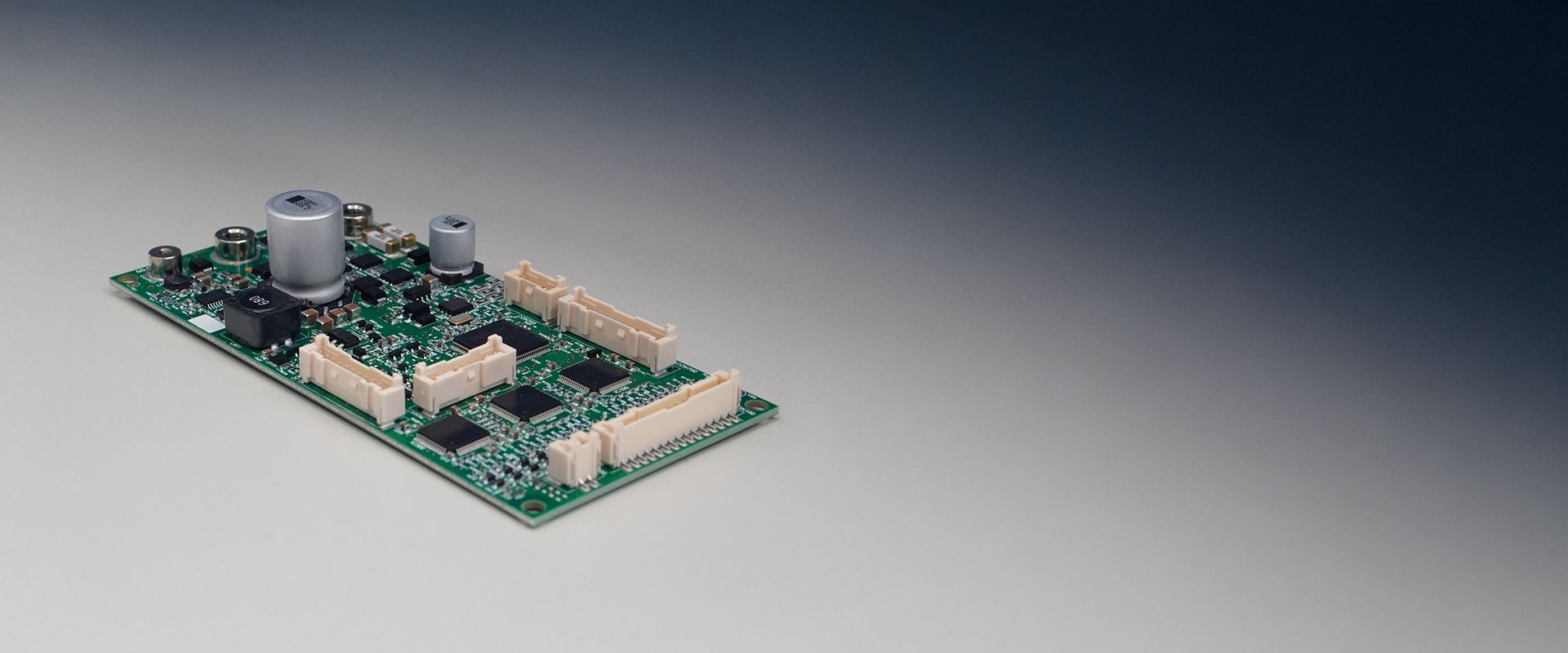

BMS Circuit Board

Other Variants

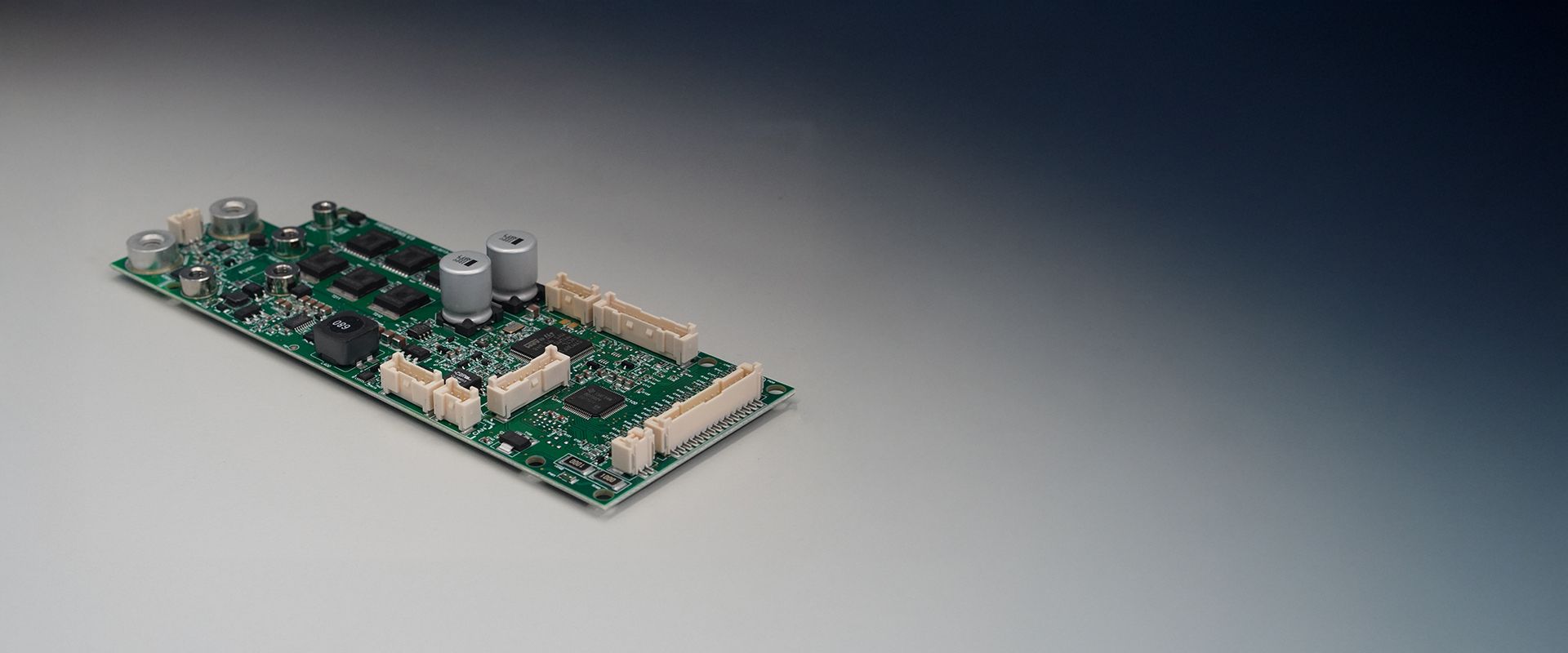

  • BMS Circuit Board
  • The inside of a battery pack

    Pre Assembled & Approved

    48V Li-Ion Battery Packs

    Featuring our advanced Battery Management System seamlessly integrated within!


    This state-of-the-art technology ensures optimal performance and longevity, providing users with superior efficiency and reliability. Experience the difference that our advanced BMS brings to your energy solutions!
